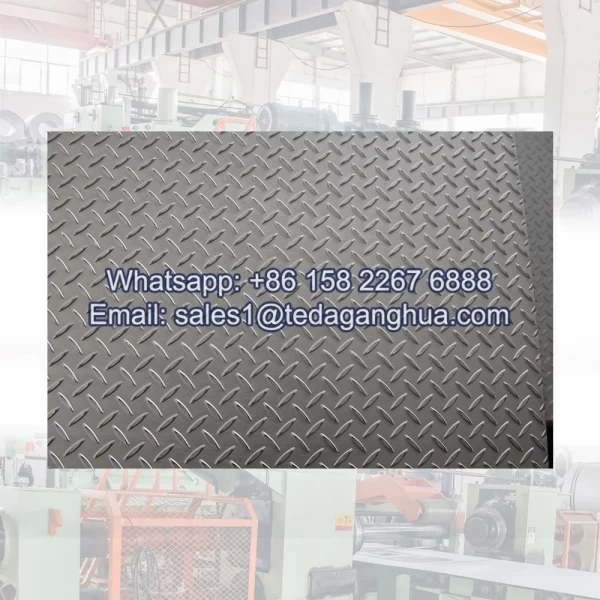

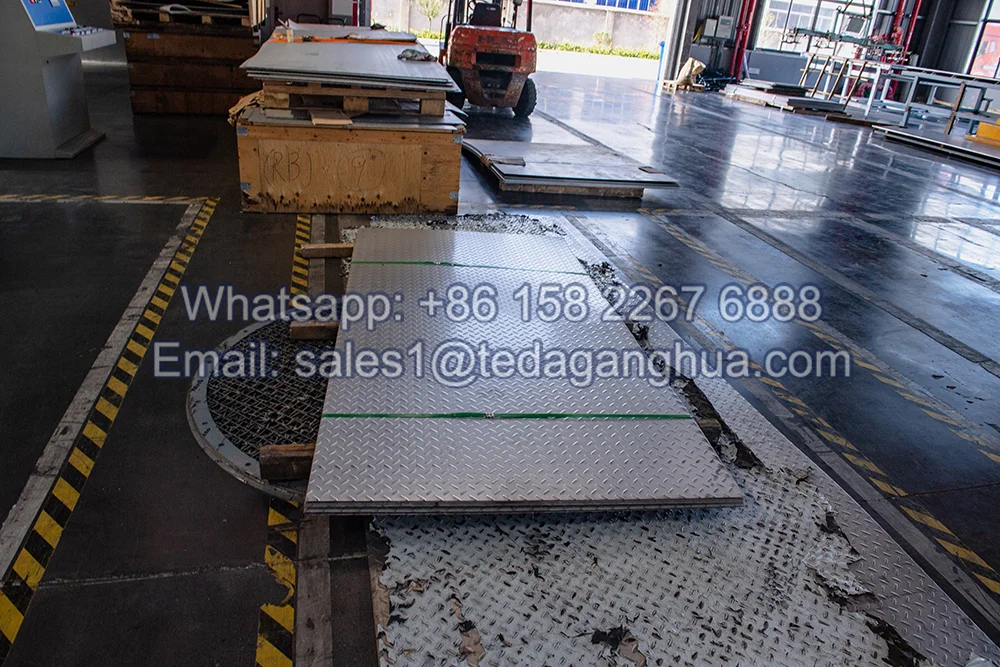

Checkered Plate Stainless Steel

Checkered plate stainless steel is a textured stainless steel sheet with raised patterns such as diamond or checker designs. It is widely used for anti-slip flooring, stair treads, ramps, and industrial platforms due to its combination of strength, durability, and corrosion resistance.

Common Thickness Range

The thickness of checkered stainless steel plate is one of the most important specifications, as it determines load capacity and application type.

• Light-duty applications: 2.0 mm – 3.0 mm
• Standard industrial use: 3.0 mm – 6.0 mm
• Heavy-duty flooring: 6.0 mm – 10.0 mm
• Special structural applications: above 10.0 mm (less common)

Standard Sheet Sizes

Checkered stainless steel plates are typically supplied in standard sheet dimensions for easy fabrication and transportation.

Common Width and Length

• 1000 mm × 2000 mm
• 1219 mm × 2438 mm (4 ft × 8 ft)
• 1500 mm × 3000 mm
• 1500 mm × 6000 mm

Custom cutting sizes are also widely available based on project requirements.

Pattern Specifications

Different checkered patterns also influence usability and application performance.

• Diamond pattern: most common industrial standard
• Five-bar pattern: high slip resistance for heavy-duty use
• Small checker pattern: lighter applications and decorative use
• Customized embossing patterns: architectural or special design needs

Material Grades Commonly Used

Checkered stainless steel plates are typically produced in standard austenitic grades:

• 304: general-purpose, good corrosion resistance
• 304L: improved weldability
• 316: higher corrosion resistance, suitable for marine environments
• 316L: low carbon version for enhanced corrosion performance

Surface Finish Options

• Mill finish (standard industrial surface)
• Brushed finish (uniform directional texture)
• Polished finish (improved appearance for architectural use)

Tolerance and Fabrication Standards

• Thickness tolerance depends on production process (hot rolled or embossed)
• Flatness varies based on pattern depth
• Edges can be supplied as mill edge or cut edge
• Suitable for cutting, welding, bending, and forming
