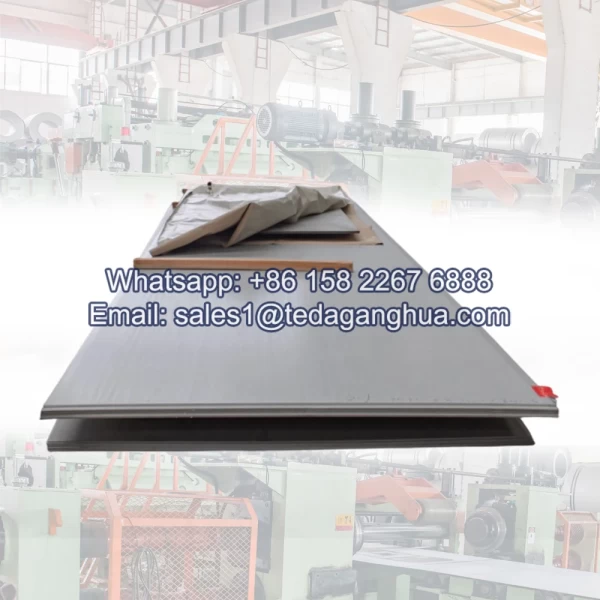

2205 Sheet
2205 duplex stainless steel sheet is a high-strength, corrosion-resistant material with a balanced duplex microstructure, making it one of the most widely used stainless steels in industrial environments. Compared with 2507 super duplex stainless steel, 2205 offers a more economical solution while still providing excellent mechanical strength and corrosion resistance for most engineering applications.
- Description
2205 duplex stainless steel sheet is one of the most widely used duplex stainless steels, combining austenitic and ferritic phases in its microstructure. This dual-phase structure gives it a unique balance of high strength, excellent corrosion resistance, and good stress corrosion cracking resistance.
Chemical Composition of 2205 Stainless Steel
2205 is designed with higher chromium and molybdenum content compared to standard austenitic grades.
| Element | Content (%) | Function |
|---|---|---|
| Chromium (Cr) | 21–23% | Corrosion resistance |
| Nickel (Ni) | 4.5–6.5% | Stabilizes duplex structure |
| Molybdenum (Mo) | 2.5–3.5% | Pitting corrosion resistance |
| Nitrogen (N) | 0.08–0.20% | Strength and stability |
| Carbon (C) | ≤0.03% | Reduces carbide formation |
| Manganese (Mn) | ≤2.0% | Improves toughness |
Key Performance Characteristics of 2205 Sheet
1. High Strength
2205 duplex stainless steel has approximately:
- 2× the strength of 304 stainless steel
This allows:
- Thinner material use
- Reduced structural weight
- Higher load-bearing capacity
2. Excellent Corrosion Resistance
- Strong resistance to chloride environments
- High resistance to pitting and crevice corrosion
- Suitable for marine and chemical applications
3. Good Stress Corrosion Cracking Resistance
Compared to austenitic stainless steels:
- Much better resistance in chloride-rich environments
- Stable performance under stress and temperature variation
4. Balanced Duplex Microstructure
- ~50% austenite
- ~50% ferrite
This structure provides:
- Strength from ferrite
- Toughness from austenite
2205 vs 2507 Duplex Stainless Steel
2507 (Super Duplex Stainless Steel) is the higher-grade version of 2205.
Key Differences
| Property | 2205 Duplex | 2507 Super Duplex |
|---|---|---|
| Chromium (Cr) | 21–23% | 24–26% |
| Nickel (Ni) | 4.5–6.5% | 6–8% |
| Molybdenum (Mo) | 2.5–3.5% | 3–5% |
| Strength | High | Very High |
| Corrosion resistance | Excellent | Superior |
| Pitting resistance | Good | Outstanding |
| Cost level | Moderate | Higher |
Performance Comparison Summary
Advantages of 2205
- Excellent cost-performance balance
- High strength suitable for most industrial use
- Strong resistance to chloride corrosion
- Widely available and easy to fabricate
Advantages of 2507
- Higher corrosion resistance in extreme environments
- Better performance in offshore and seawater systems
- Higher mechanical strength
- Suitable for highly aggressive chemical conditions
Typical Applications
2205 Duplex Stainless Steel Sheet
- Chemical processing equipment
- Marine environments
- Pressure vessels
- Oil and gas pipelines
- Heat exchangers
2507 Super Duplex Stainless Steel Sheet
- Offshore platforms
- Desalination plants
- Highly corrosive chemical systems
- Deep-sea engineering equipment
