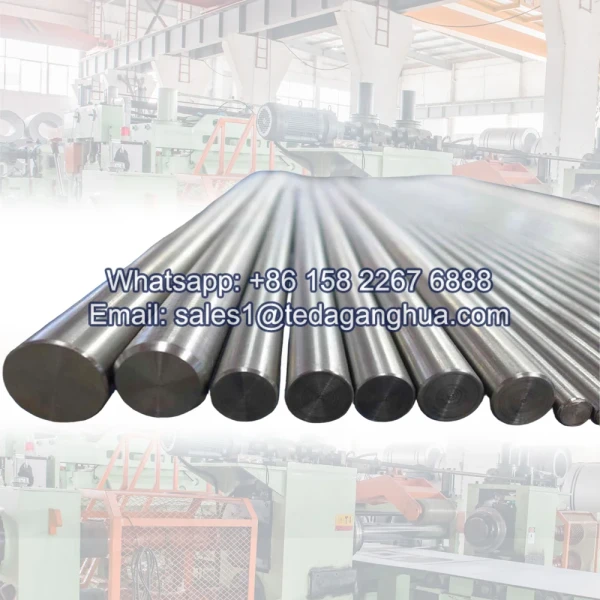

304 Stainless Bar vs 316 Stainless Bar: Key Differences and Performance Comparison
304 stainless bar and 316 stainless bar are two of the most widely used austenitic stainless steel materials in industrial applications. They share similar mechanical strength and formability, but differ significantly in corrosion resistance due to their alloy composition.
Understanding the difference between these two grades helps engineers and buyers select the right material for cost, durability, and environmental conditions.
1. Chemical Composition Comparison
| Element | 304 Stainless Bar | 316 Stainless Bar | Main Difference |
|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0% | 16.0 – 18.0% | Slightly higher in 304 |
| Nickel (Ni) | 8.0 – 10.5% | 10.0 – 14.0% | Higher in 316 |
| Molybdenum (Mo) | None | 2.0 – 3.0% | Key advantage of 316 |
| Carbon (C) | ≤ 0.08% | ≤ 0.08% | Similar |
2. Corrosion Resistance Performance
The most important difference between 304 and 316 stainless bar is corrosion resistance, especially in chloride environments.
- 304 Stainless Bar: Good corrosion resistance in general atmospheric and indoor environments
- 316 Stainless Bar: Excellent resistance to seawater, salt spray, and chemical exposure
The addition of molybdenum in 316 significantly improves resistance to pitting and crevice corrosion.
3. Mechanical Properties Comparison
| Property | 304 Stainless Bar | 316 Stainless Bar |
|---|---|---|
| Tensile Strength | 515 – 750 MPa | 515 – 750 MPa |
| Yield Strength | ~205 MPa | ~205 MPa |
| Elongation | ~40% | ~40% |
Both materials have similar mechanical strength, making corrosion resistance the main selection factor.
4. Application Environment Difference
- 304 Stainless Bar: Indoor structures, food equipment, general machinery, architectural use
- 316 Stainless Bar: Marine engineering, chemical processing, medical equipment, coastal construction
5. Cost Comparison
304 stainless bar is more cost-effective due to the absence of molybdenum and lower nickel content. 316 stainless bar is more expensive but provides superior performance in harsh environments.
- 304: Economical and widely available
- 316: Higher cost, higher corrosion resistance
6. How to Choose Between 304 and 316 Stainless Bar
The selection depends mainly on the working environment:
- If the environment is dry or mildly corrosive → choose 304
- If exposed to seawater, salt, or chemicals → choose 316
- If long-term durability is critical → 316 is preferred
7. Industrial Supply Capability
In global stainless steel supply chains, Teda Ganghua provides both 304 and 316 stainless bars with stable chemical composition, precise dimensional control, and export-grade packaging for industrial applications.
This allows customers to select the most suitable grade based on performance requirements and cost optimization.
FAQ
1. Which is better, 304 or 316 stainless steel bar?
316 is better in corrosion resistance, while 304 is more cost-effective for general use.
2. Why is 316 more expensive than 304?
Because it contains molybdenum and higher nickel content, which improves corrosion resistance.
3. Can 304 stainless bar be used outdoors?
Yes, but it is less suitable for coastal or high-chloride environments.
4. Is 316 stainless steel stronger than 304?
Their mechanical strength is similar; the main difference is corrosion resistance.
5. Does Teda Ganghua supply both 304 and 316 stainless bars?
Yes, Teda Ganghua supplies both grades with stable quality and export-ready packaging.
