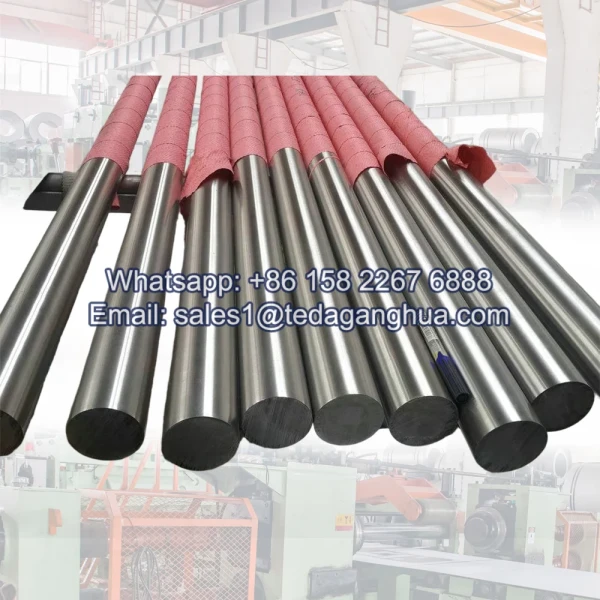

17-4 Stainless Steel Round Bar: Composition and Performance Characteristics
17-4 stainless steel round bar (also known as 17-4PH or AISI 630) is a precipitation-hardening martensitic stainless steel that combines high strength with good corrosion resistance. It is widely used in aerospace, marine, petrochemical, and precision engineering industries where both mechanical performance and dimensional stability are required.
Unlike austenitic stainless steels such as 304 or 316, 17-4 stainless steel achieves its strength through heat treatment (aging process), not only through alloy composition, making it suitable for high-load structural and mechanical components.
Chemical Composition of 17-4 Stainless Steel
The performance of 17-4 stainless steel round bar is mainly determined by its balanced chromium, nickel, and copper alloy system, along with a controlled carbon level and precipitation-hardening elements.
| Element | Typical Content (%) | Function |
|---|---|---|
| Chromium (Cr) | 15.0 – 17.5 | Corrosion resistance and oxidation protection |
| Nickel (Ni) | 3.0 – 5.0 | Stabilizes martensitic structure and toughness |
| Copper (Cu) | 3.0 – 5.0 | Key element for precipitation hardening |
| Niobium / Columbium (Nb) | 0.15 – 0.45 | Strengthening and grain stabilization |
| Carbon (C) | ≤ 0.07 | Controls hardness and weldability |
| Manganese (Mn) | ≤ 1.0 | Improves toughness and hot working |
| Silicon (Si) | ≤ 1.0 | Enhances oxidation resistance |
| Iron (Fe) | Balance | Base matrix |
Key Performance Characteristics of 17-4 Stainless Steel Round Bar
17-4 stainless steel is known for its exceptional strength-to-corrosion-resistance ratio, making it one of the most widely used precipitation-hardening stainless steels in engineering applications.
- Very high tensile strength after heat treatment (aging)
- Good corrosion resistance in mild atmospheric and chemical environments
- Excellent fatigue resistance under cyclic loading
- Strong hardness stability with minimal deformation after processing
- Good machinability in solution-annealed condition
Heat Treatment and Strength Development
The mechanical properties of 17-4 stainless steel round bar are not fixed in its raw state. They are significantly improved through precipitation hardening (aging treatment), which forms fine copper-rich phases in the microstructure.
| Condition | Heat Treatment | Performance Level |
|---|---|---|
| Solution Annealed (Condition A) | 1050°C + rapid cooling | Soft, good machinability |
| H900 | Aging at ~480°C | Maximum strength and hardness |
| H1025–H1150 | Aging at higher temperatures | Balanced strength and toughness |
Corrosion Resistance Behavior
While 17-4 stainless steel offers good corrosion resistance, it is not as resistant as 316 stainless steel in chloride-rich environments. However, it performs well in general atmospheric, industrial, and mildly corrosive conditions.
- Good resistance to atmospheric corrosion
- Moderate resistance in marine environments
- Suitable for oil, gas, and petrochemical conditions
- Performance depends on heat treatment condition
Industrial Importance of Material Composition
The unique combination of chromium, nickel, and copper in 17-4 stainless steel round bar enables it to achieve both high strength and corrosion resistance. This balance is critical for precision components that must perform under high mechanical stress.
In global supply chains, suppliers such as Teda Ganghua provide controlled-composition stainless steel bars with stable heat-treatment performance, ensuring consistent quality for aerospace and industrial manufacturing.
Application-Driven Material Advantage
- High-load mechanical components requiring strength and durability
- Aerospace structural fittings and precision parts
- Oil and gas valve and pump components
- Marine engineering connectors and shafts
- Industrial machinery requiring fatigue resistance
For related stainless steel bar and profile products, visit
stainless steel profile solutions to explore industrial-grade bars and engineered stainless steel sections.
FAQ
1. What is 17-4 stainless steel mainly made of?
It mainly consists of chromium, nickel, copper, and niobium, with iron as the base metal.
2. Why is copper important in 17-4 stainless steel?
Copper enables precipitation hardening, which significantly increases strength after heat treatment.
3. Is 17-4 stainless steel stronger than 304?
Yes, after aging treatment, 17-4 can achieve much higher strength than 304 stainless steel.
4. Can 17-4 stainless steel resist corrosion in marine environments?
It has moderate resistance, but 316 stainless steel performs better in high-chloride environments.
5. Does Teda Ganghua supply 17-4 stainless steel round bars?
Yes, Teda Ganghua supplies precision-controlled 17-4PH stainless steel bars for industrial and engineering applications.
