304 الفولاذ المقاوم للصدأ قناة U قناة C

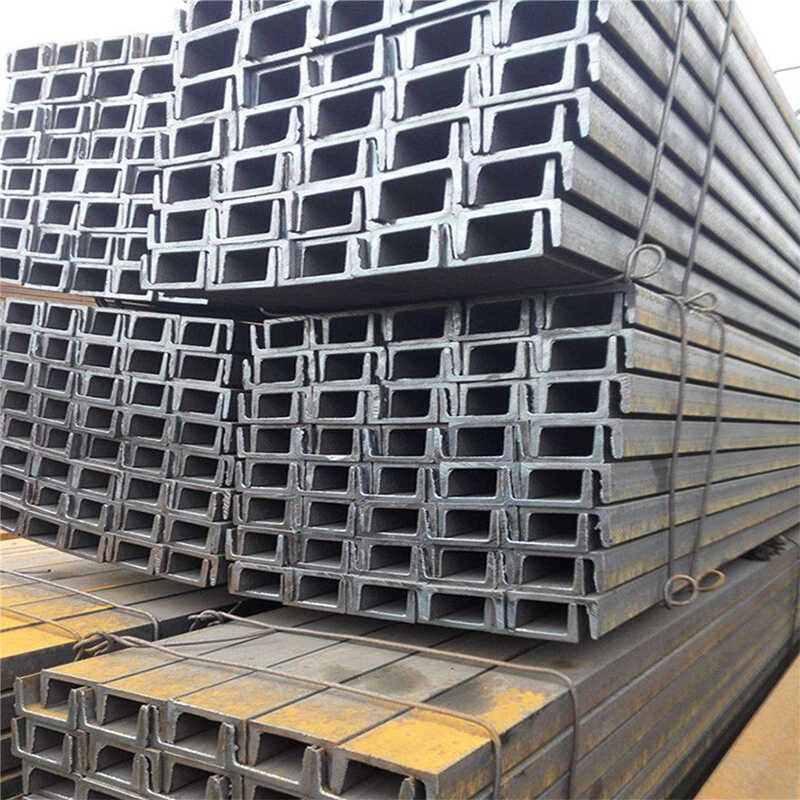

أ steel channel is a type of structural profile formed by rolling metal into a C- or U-shaped section. These channels consist of a central web and two side الشفاه, which may be tapered or parallel depending on the design. بينما carbon steel channels are commonly used, stainless steel channel options are preferred for environments requiring corrosion resistance and long-term durability.
- وصف
Stainless steel channel يستخدم على نطاق واسع في:
-
Architectural supports, wall studs, and rafters
-
Framing systems for windows, أبواب, والألواح
-
Heavy equipment mounts and vibration-resistant structures
-
Hygienic and corrosion-prone areas, including food processing and marine environments
Industries value stainless steel u channel و stainless steel c channel options for their high strength, resistance to rust, and clean aesthetic. شائع stainless steel channel sizes range from small architectural sections like 1/4 stainless steel u channel, 1/2 inch stainless steel u channel, و 3/4 stainless steel u channel, to heavy-duty structural profiles used in construction and fabrication.
U Channel Stainless Steel
أ u channel stainless steel profile has a “ش” shape with two parallel flanges perpendicular to the base web. ويستخدم على نطاق واسع في:
-
Framing glass panels, شبكة, or wood boards
-
Escalator and stair railings
-
Metal forming and rolling applications
-
Support for equipment and enclosures
For most applications requiring hygiene and corrosion resistance, 304 stainless steel u channel is the standard choice. Its smooth finish and structural integrity make it ideal for indoor and outdoor architectural use.
| أبعاد | د | ب | Tw | Tt |
| 3 س 1.375 س .188 | 3 | 1.375 | 0.188 | 0.188 |
| 3 س 1.5 س .188 | 3 | 1.5 | 0.188 | 0.188 |
| 3 س 1.5 س .25 | 3 | 1.5 | 0.25 | 0.25 |
| 4 س 1.75 س .25 | 4 | 1.75 | 0.25 | 0.25 |
| 4 س 2 س .25 | 4 | 2 | 0.25 | 0.25 |
| 5 س 1.87 س .375 | 5 | 1.87 | 0.375 | 0.375 |
| 5 س 2.5 س .25 | 5 | 2.5 | 0.25 | 0.25 |
| 6 س 3 س .25 | 6 | 3 | 0.25 | 0.25 |
| 6 س 3 س .375 | 6 | 3 | 0.375 | 0.375 |
| 8 س 4 س .25 | 8 | 4 | 0.25 | 0.25 |
| 8 س 4 س .375 | 8 | 4 | 0.375 | 0.375 |
C Channel Stainless Steel
ال stainless steel c channel أو 304 stainless steel c channel has a similar profile to the U channel but typically features longer or slightly curved flanges, enhancing rigidity. This makes C channels ideal for:
-
Steel framing
-
Load-bearing frames
-
Bridge supports
-
Warehouse racking systems
When additional structural support is needed, c channels provide more resistance to bending and are suitable for high-load environments.
| أبعاد | د | ب | Tw | Tt | Est. Wt |
| 3 X 4.10 | 3 | 1.41 | 0.17 | 0.273 | 4.1 |
| 3 X 5.00 | 3 | 1.498 | 0.258 | 0.273 | 5 |
| 4 X 5.40 | 4 | 1.584 | 0.184 | 0.296 | 5.4 |
| 4 X 7.25 | 4 | 1.721 | 0.321 | 0.296 | 7.25 |
| 5 X 6.70 | 5 | 1.75 | 0.19 | 0.32 | 6.7 |
| 5 X 9.00 | 5 | 1.885 | 0.325 | 0.32 | 9 |
| 6 X 8.20 | 6 | 1.92 | 0.2 | 0.343 | 8.2 |
| 6 X 10.50 | 6 | 2.034 | 0.314 | 0.343 | 10.5 |
| 6 X 13.00 | 6 | 2.157 | 0.437 | 0.343 | 13 |
| 7 X 9.80 | 7 | 2.09 | 0.21 | 0.366 | 9.8 |
| 7 X 12.25 | 7 | 2.194 | 0.314 | 0.366 | 12.25 |
| 8 X 11.50 | 8 | 2.26 | 0.22 | 0.39 | 11.5 |
| 8 X 13.75 | 8 | 2.343 | 0.303 | 0.39 | 13.75 |
| 8 X 18.75 | 8 | 2.527 | 0.487 | 0.39 | 18.75 |
| 9 X 15.00 | 9 | 2.485 | 0.285 | 0.413 | 15 |
| 9 X 20.00 | 9 | 2.648 | 0.448 | 0.413 | 20 |
| 10 X 15.30 | 10 | 2.6 | 0.24 | 0.436 | 15.3 |
| 10 X 20.00 | 10 | 2.739 | 0.379 | 0.436 | 20 |
| 10 X 25.00 | 10 | 2.886 | 0.526 | 0.436 | 25 |
| 10 X 30.00 | 10 | 3.033 | 0.673 | 0.436 | 30 |
| 12 X 20.70 | 12 | 2.942 | 0.282 | 0.501 | 20.7 |
| 12 X 25.00 | 12 | 3.047 | 0.387 | 0.501 | 25 |
| 12 X 30.00 | 12 | 3.17 | 0.51 | 0.501 | 30 |
| 15 X 33.90 | 15 | 3.4 | 0.4 | 0.65 | 33.9 |
| 15 X 40.00 | 15 | 3.52 | 0.52 | 0.65 | 40 |
التسليم السريع مورد الفولاذ المقاوم للصدأ
الحزمة القياسية الصالحة للإبحار من الفولاذ المقاوم للصدأ
حزمة الحزمة; حقيبة خشبية,حزمة لوح خشبي; حاوية أو السائبة; خاص حسب طلب العميل
